Rhinorack

PIONEER THRU AXLE BIKE CARRIER Part No: 43233

PIONEER THRU AXLE BIKE CARRIER Part No: 43233

Regular price $188.00 NZD
Regular price Sale price $188.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

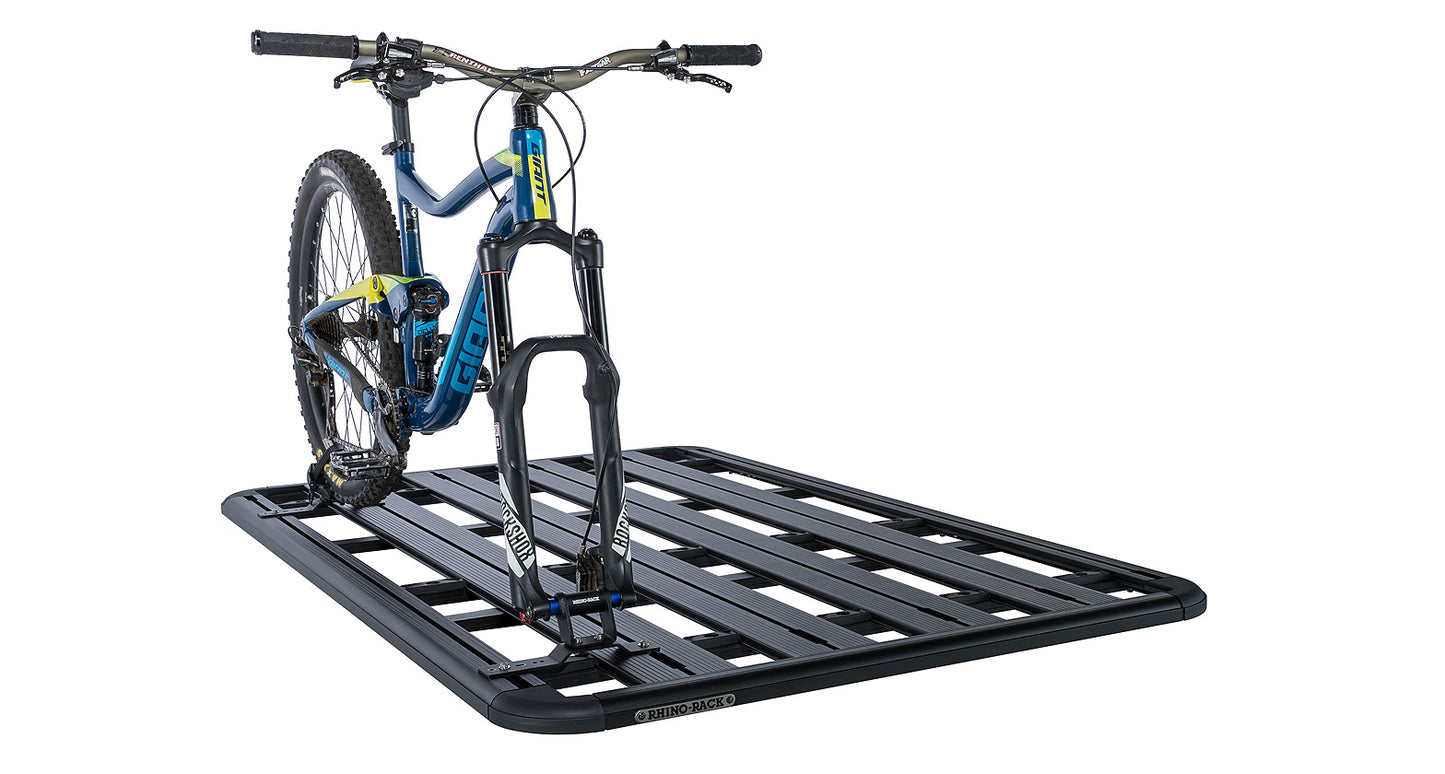

The Pioneer Thru Axle Bike Carrier allows you to attach a thru axle bike directly to a Pioneer system. Designed for strength and durability, it firmly secures your bike whilst reducing any sway and rocking created when driving. The bike mount comes with 15mm x 100mm thru axle insert, with additional sizes available for purchase.

Overview

Featuring easy and quick installation, using your existing thru axle and a quick release strap to safely secure the rear tyre. The Pioneer Thru Axle Bike carrier mounts through to the Pioneer channels allowing full placement flexibility. The front mount can be turned around to offset handlebars when carrying two bikes. If carrying three or more bikes every second mount can be installed back to front to allow for maximum space.

Features:

  • Compatible with all Rhino-Rack Pioneer systems.
  • The housing is constructed using a satin black powder coated steel
  • The inserts are blue anodised aluminium to prevent rusting
  • Pre-assembled
  • 15mm x 100mm Multi-Axle Adaptor included
  • Compatible with all other Rhino-Rack Thru Axle inserts (view product compatibility for insert sizes)
  • All fixings and tools included
  • Quick and easy installation/removal
  • The fork carrier can be rotated to prevent handlebars clashing
  • Rear wheel carrier can be flipped to fit on smaller trays
  • Rear wheel strap fits all wheel dimensions
  • Front mount height: 95mm
  • Rear mount height (without strap): 98mm
  • Maximum on-road weight allowance: 17kg/37lbs
  • Maximum off-road weight allowance: 11kg/24lbs
  • Not suitable for electric bikes (e-bikes)
Bike Types
Fat Tyre Bikes
Mountain Bike
Road Bikes
Mount Style
Front Wheel off
Product Weight
2.0 kg
Warranty
3 Years
